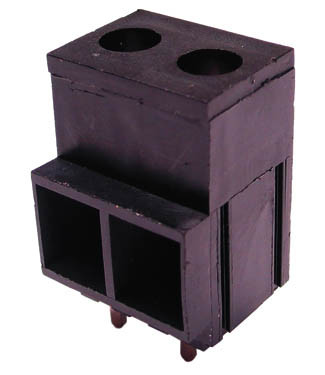

XY135-2P 10.16mm (+) XINYA Terminal block

Symbol Micros: Z TL800-2pkc

17600

Z TL800-2pkc

Contractor Symbol:

Case : Rys.TL800-2pkc

Datasheet

Technical drawing Add to favourites

2 poles, pitch 10.16mm, height 29.72mm, black colour, 600V, 50A, 6-18AWG, straigth, lift, cross screw eqiv.

Parameters

Height:	29,72mm
Terminal pitch:	10,16mm
Number of pins:	2
Manufacturer:	XINYA
Colour:	Black
Screw type:	Cross head screw

All parameters

Manufacturer:: XINYA Manufacturer part number: XY135-2P 10.16mm RoHS Case style: Rys.TL800-2pkc

In stock:

364 pcs.

Quantity of pcs.	1+	5+	20+	70+	280+
Net price (EUR)	1,0830	0,7157	0,5909	0,5415	0,5156

Add to comparison tool Add inquiry (RFQ)

Packaging:
70/1120 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-01-05

Quantity of pcs.: 1120

• Parameters

Height:	29,72mm
Terminal pitch:	10,16mm
Number of pins:	2
Manufacturer:	XINYA
Colour:	Black
Screw type:	Cross head screw
