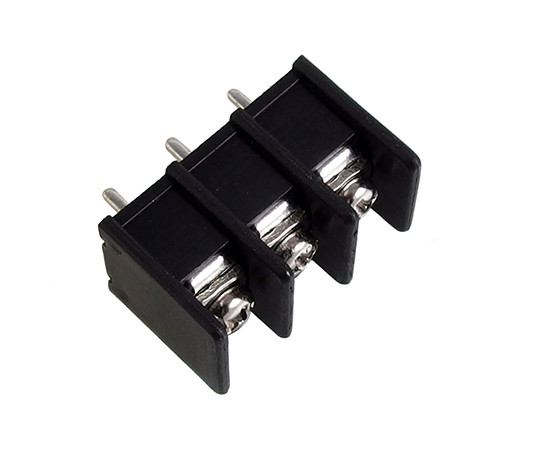

XY825A-3P 7.62mm XINYA Terminal block

Symbol Micros: Z TL825A-3P

109609

Z TL825A-3P

Contractor Symbol:

Case : Rys.TL825A-3P

Datasheet

Technical drawing Add to favourites

3 pola, p. 7.62mm, height 14.7mm, black color 300V, 15A, 22-14AWG, 2.5mm2

Parameters

Height:	14,7mm
Terminal pitch:	7,62mm
Number of pins:	3
Manufacturer:	XINYA
Colour:	Black

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	14,7mm
Terminal pitch:	7,62mm
Number of pins:	3
Manufacturer:	XINYA
Colour:	Black
