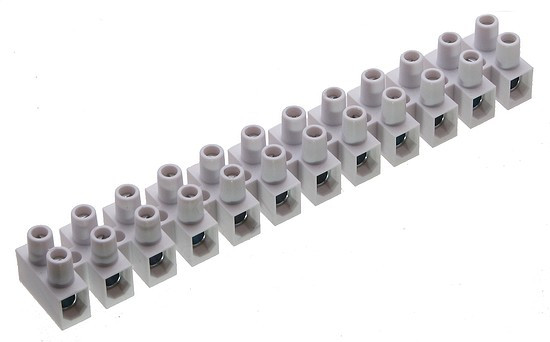

DG12HS-1.2-12P-17-100AH DEGSON Feed through terminal blocks

Symbol Micros: Z TLDG12HS-0-12p

34693

Z TLDG12HS-0-12p

Contractor Symbol:

Case : Rys.DG12HS-0-12p

Datasheet

Technical drawing Add to favourites

12 poles, pitch 11.5mm, white colour 300VAC, 30A, wire range 2.5-10mm2, insulating material PA66

Parameters

Terminal pitch:	11,5mm
Height:	19mm
Number of pins:	12
Colour:	White
Manufacturer:	DEGSON

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-10-15

Quantity of pcs.: 100

• Parameters

Terminal pitch:	11,5mm
Height:	19mm
Number of pins:	12
Colour:	White
Manufacturer:	DEGSON
