XY2500R-A(5.0)-17P XINYA Terminal block

Symbol Micros: Z TLPH200r-17p

57005

Z TLPH200r-17p

Contractor Symbol:

Case : Rys.TLPH200r-17p

Datasheet

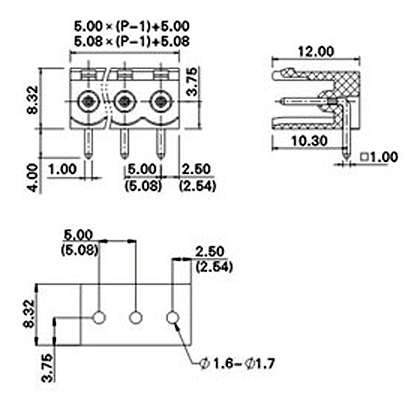

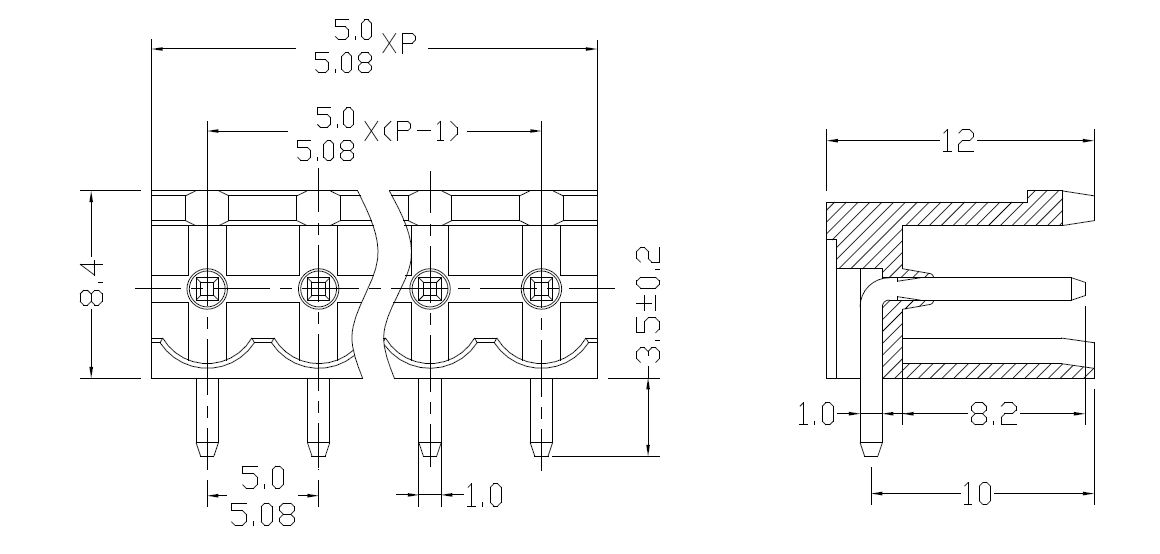

Technical drawing Technical drawing Add to favourites

17 poles; pitch: 5,00mm; height 8.4mm; green colour; open, 300V; 12A; angled, mates with TLPS 5,00mm; solder pin: brass; tin plated; equivalent: MSTB 2,5/17-G; 1754737; 2EDGR-5.0-17P

Parameters

Height:	8,4mm
Number of pins:	17
Colour:	Green
Manufacturer:	XINYA
Terminal pitch:	5,0mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	8,4mm
Number of pins:	17
Colour:	Green
Manufacturer:	XINYA
Terminal pitch:	5,0mm
