XY2500V-C(5.08)-17P XINYA Terminal block

Symbol Micros: Z TLPH300v-17p

57090

Z TLPH300v-17p

Contractor Symbol:

Case : Rys.TLPH300v-17p

Datasheet

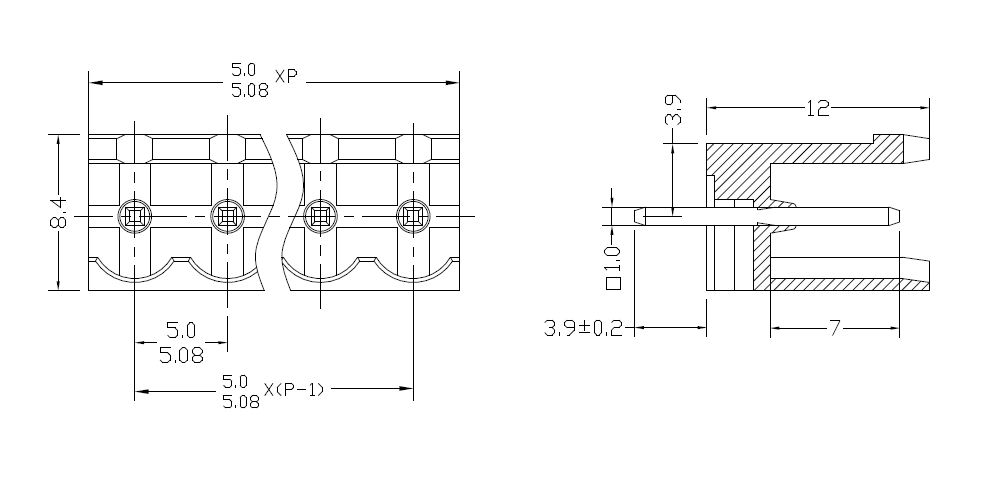

Technical drawing Add to favourites

17 poles; pitch: 5.08mm; height 12mm; green colour; open, 300V; 15A; straigth, mates with TLPS 5.08mm solder pin: brass; tin plated; equivalent: MSTBV 2,5/17-G-5,08; 1758160; 2EDGV-5.08-17P

Parameters

Height:	12,0mm
Number of pins:	17
Colour:	Green
Manufacturer:	XINYA
Terminal pitch:	5,08mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	12,0mm
Number of pins:	17
Colour:	Green
Manufacturer:	XINYA
Terminal pitch:	5,08mm
