XY2500V-F(3.5)-12P XINYA

Symbol Micros: Z TLPHC001v-12p

33681

Z TLPHC001v-12p

Contractor Symbol:

Case : Rys.TLPHC001v-12p

Datasheet

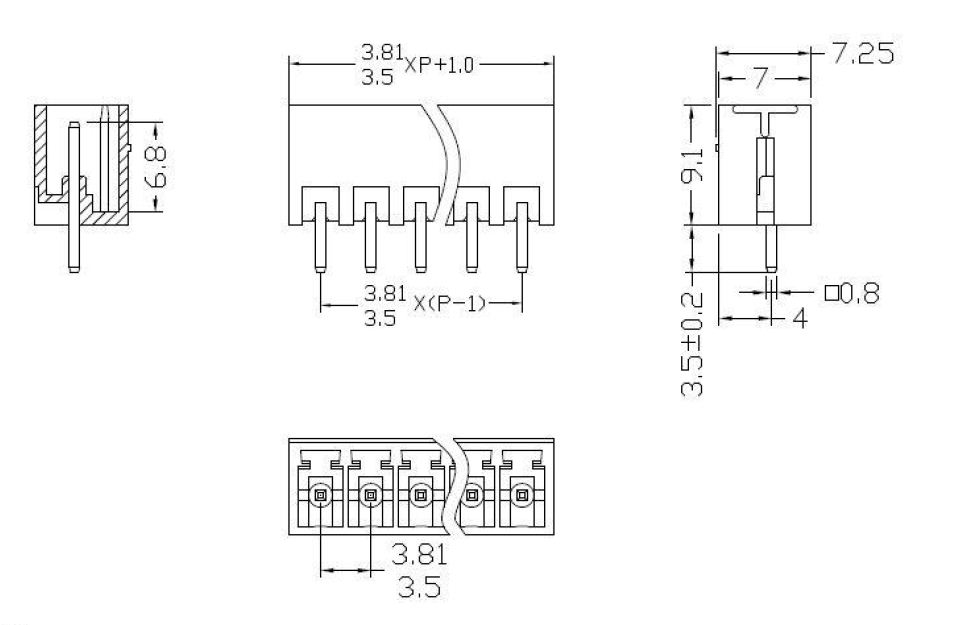

Technical drawing Add to favourites

12 poles, pitch 3.5mm, height 9.1mm, green color, 300V, 8A, straight, mates with TLPS001 / TLPSZ001 3.5mm solder pin: brass, tin plated

Parameters

Height [m]:	9,1mm
Number of pins:	12
Colour:	Green
Terminal pitch [m]:	3,5mm
Manufacturer:	XINYA

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height [m]:	9,1mm
Number of pins:	12
Colour:	Green
Terminal pitch [m]:	3,5mm
Manufacturer:	XINYA
