XY2500R-F(3.81)-02P XINYA

Symbol Micros: Z TLPHC100r-02p

14725

Z TLPHC100r-02p

Contractor Symbol:

Case : Rys.TLPHC100r-02p

Datasheet

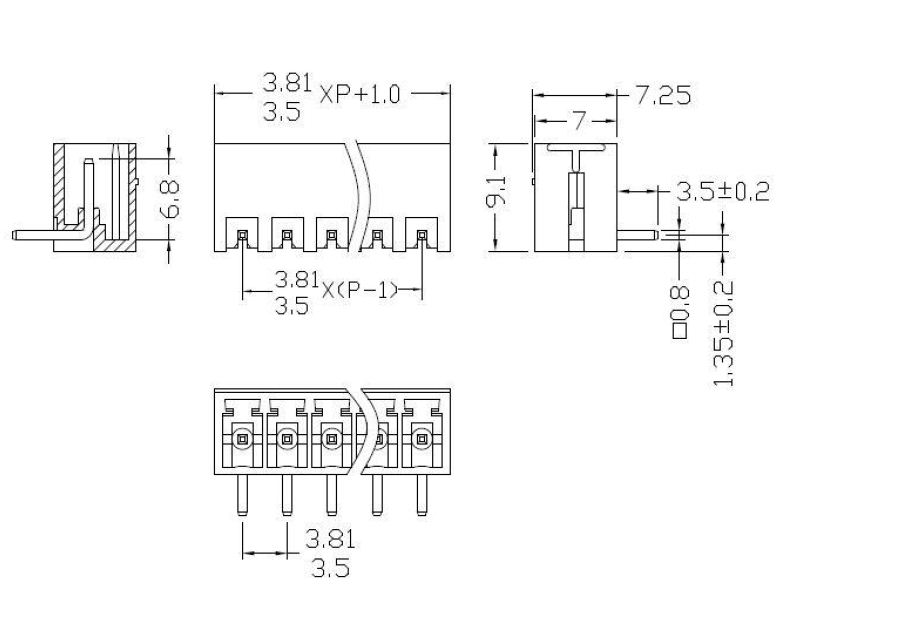

Technical drawing Add to favourites

2 poles, pitch 3.81mm, height 7.0mm, green color, 300V, 8A, angled, mates with TLPS100 / TLPSZ100 3.81mm solder pin: brass, tin plated, eqiv. MC 1,5/ 2-G-3,81; 1803277; 15EDGRC-3.81-02P

Parameters

Height:	7,0mm
Number of pins:	2
Terminal pitch:	3,81mm
Colour:	Green
Manufacturer:	XINYA

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	7,0mm
Number of pins:	2
Terminal pitch:	3,81mm
Colour:	Green
Manufacturer:	XINYA
