XY2500R-F(3.81)-12P XINYA Terminal block

Symbol Micros: Z TLPHC100r-12p

33685

Z TLPHC100r-12p

Contractor Symbol:

Case : Rys.TLPHC100r-12p

Datasheet

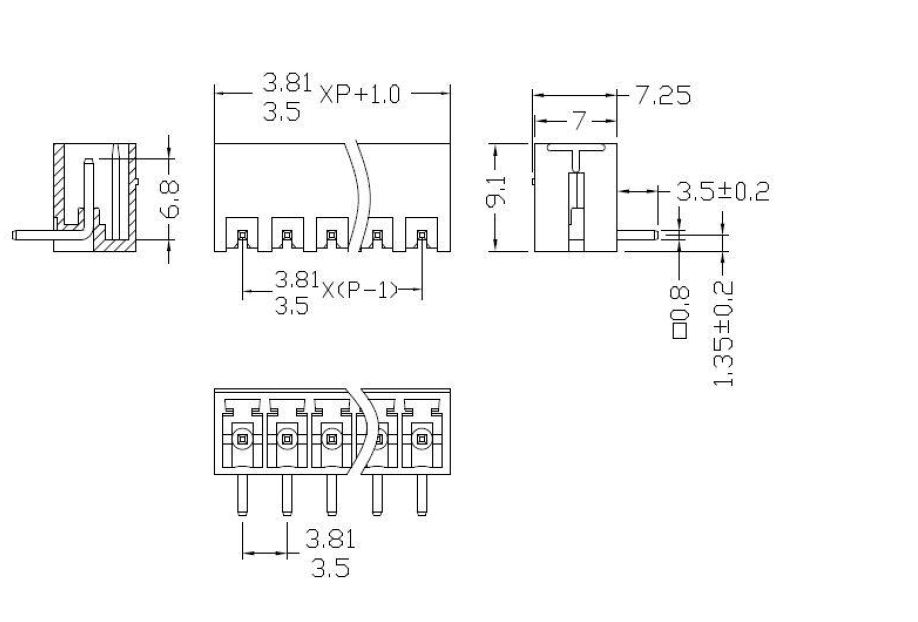

Technical drawing Add to favourites

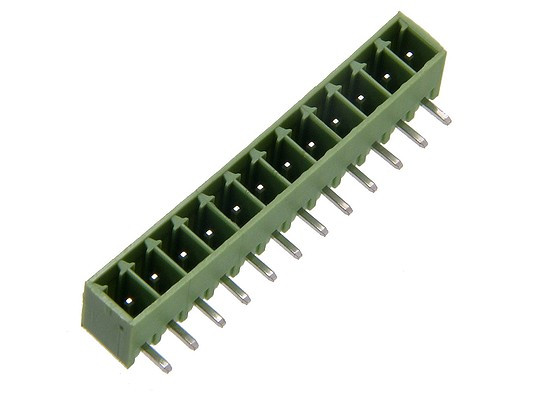

12 poles, pitch 3.81mm, height 7.0mm, green color, 300V, 8A, angled, mates with TLPS100 / TLPSZ100 3.81mm solder pin: brass, tin plated, eqiv. MC 1,5/12-G-3,81; 1803374; 15EDGRC-3.81-12P

Parameters

Height:	7,0mm
Number of pins:	12
Terminal pitch:	3,81mm
Colour:	Green
Manufacturer:	XINYA

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	7,0mm
Number of pins:	12
Terminal pitch:	3,81mm
Colour:	Green
Manufacturer:	XINYA
