15EGTVC-3.81-11P-14-00AH GOLTEN Terminal block

Symbol Micros: Z TLPHC100v-11p-GT

117096

Z TLPHC100v-11p-GT

Contractor Symbol:

Case : Rys.TLPHC100v-11p-GT

Datasheet

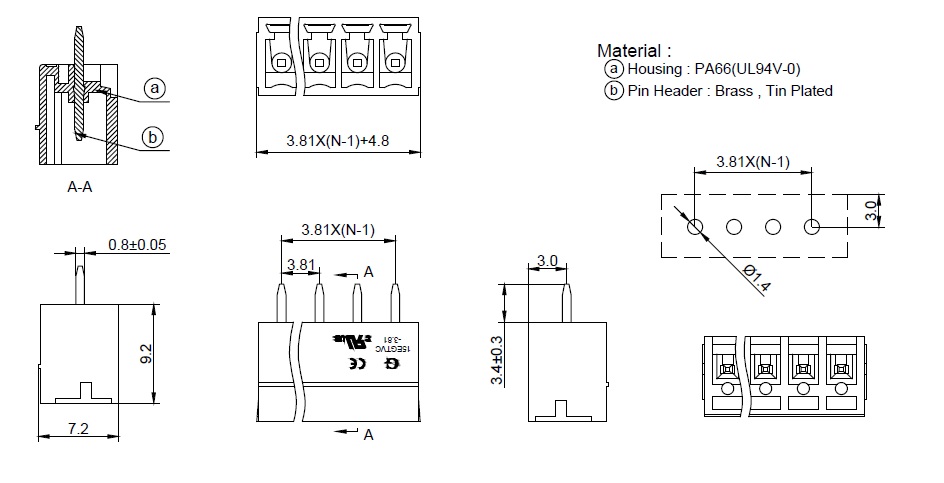

Technical drawing Add to favourites

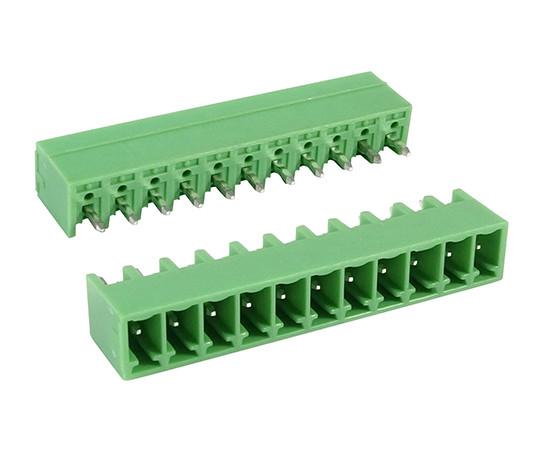

11 poles, pitch 3.81mm, height 9.2mm, green color, 300V, 8A, straight, mates with TLPS100 / TLPSZ100 3.81mm solder pin: brass, tin plated, eqiv. MCV 1,5/11-G-3,81; 1803510; 15EDGVC-3.81-11P

Parameters

Height [m]:	9,20mm
Number of pins:	11
Colour:	Green
Terminal pitch [m]:	3,81mm
Manufacturer:	GOLTEN

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height [m]:	9,20mm
Number of pins:	11
Colour:	Green
Terminal pitch [m]:	3,81mm
Manufacturer:	GOLTEN
