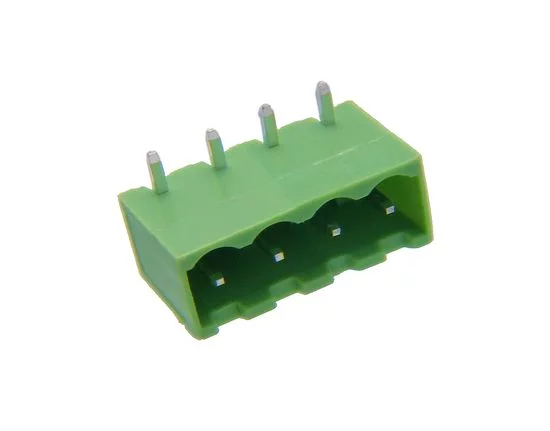

XY2500R-D(5.08)-04P XINYA Terminal block

Symbol Micros: Z TLPHC300r-04p-bk

407117

Z TLPHC300r-04p-bk

Contractor Symbol:

Case : Rys.TLPHC300r-04p

Datasheet

Technical drawing Add to favourites

4 poles; pitch: 5.08mm; height 8.4mm; black colour; close, 300V; 15A; angled, mates with TLPS 5.08mm solder pin: brass; tin plated; equivalent: MSTBA 2,5/ 4-G-5,08; 1757268; 2EDGRC-5.08-04P

Parameters

Height:	8,4mm
Number of pins:	4
Colour:	Black
Manufacturer:	XINYA
Terminal pitch:	5,08mm

All parameters

Manufacturer:: XINYA Manufacturer part number: XY2500R-D-4P 5.08 (black) RoHS Case style: Rys.TLPHC300r-04p Datasheet

In stock:

500 pcs.

Quantity of pcs.	3+	10+	50+	200+	1000+
Net price (EUR)	0,2943	0,1875	0,1315	0,1142	0,1068

Add to comparison tool Add inquiry (RFQ)

Packaging:
200 Quantity (multiple: 1)

- +

• Parameters

Height:	8,4mm
Number of pins:	4
Colour:	Black
Manufacturer:	XINYA
Terminal pitch:	5,08mm
