XY2500R-D(5.08)-16P XINYA Terminal block

Symbol Micros: Z TLPHC300r-16p

33576

Z TLPHC300r-16p

Contractor Symbol:

Case : Rys.TLPHC300r-16p

Datasheet

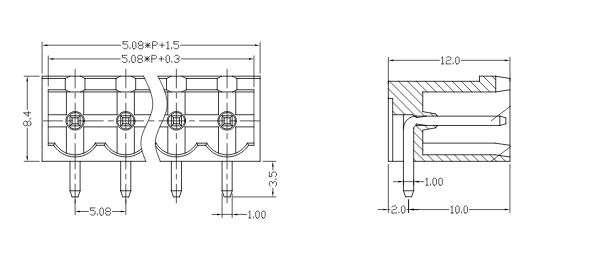

Technical drawing Add to favourites

16 poles; pitch: 5.08mm; height 8.4mm; green colour; close, 300V; 15A; angled, mates with TLPS 5.08mm solder pin: brass; tin plated; equivalent: MSTBA 2,5/16-G-5,08; 1757381; 2EDGRC-5.08-16P

Parameters

Height:	8,4mm
Number of pins:	16
Colour:	Green
Manufacturer:	XINYA
Terminal pitch:	5,08mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	8,4mm
Number of pins:	16
Colour:	Green
Manufacturer:	XINYA
Terminal pitch:	5,08mm
