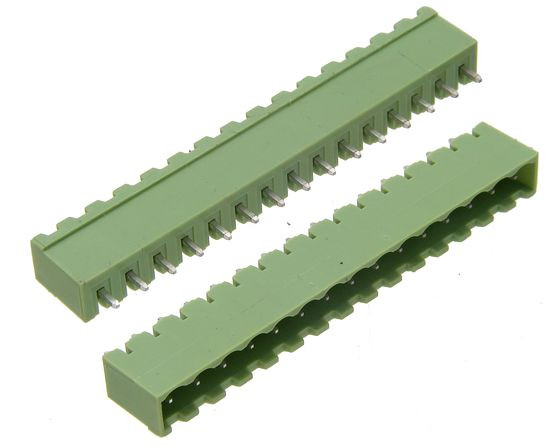

XY2500V-D(5.08)-15P XINYA Terminal block

Symbol Micros: Z TLPHC300v-15p

52547

Z TLPHC300v-15p

Contractor Symbol:

Case : Rys.TLPHC300v-15p

Datasheet

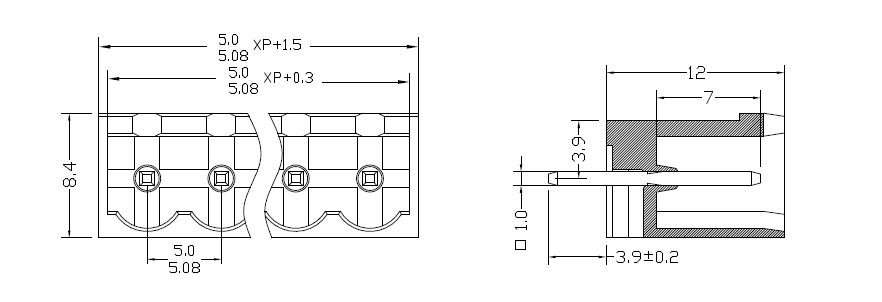

Technical drawing Add to favourites

15 poles; pitch: 5.08mm; height 12mm; green colour; close, 300V; 15A; straigth, mates with TLPS 5.08mm solder pin: brass; tin plated; equivalent: MSTBVA 2.5/15-G-5.08; 1755862; 2EDGVC-5.08-15P

Parameters

Height:	12,0mm
Number of pins:	15
Colour:	Green
Manufacturer:	XINYA
Terminal pitch:	5,08mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	12,0mm
Number of pins:	15
Colour:	Green
Manufacturer:	XINYA
Terminal pitch:	5,08mm
