XY2500V-P(7.50)-05P XINYA Terminal block

Symbol Micros: Z TLPHC400v-05p

96074

Z TLPHC400v-05p

Contractor Symbol:

Case : Rys.TLPHC400v-05p

Datasheet

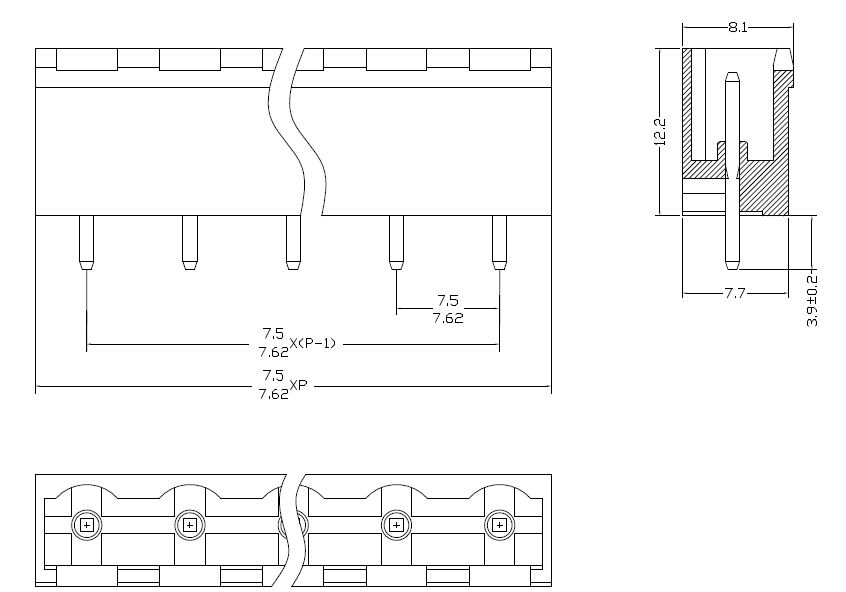

Technical drawing Add to favourites

05 poles; pitch: 7.5mm; height: 12.2mm; green colour, close, 300V; 15A; straigth, mates with TLPS 7.5mm; solder pin: brass, tin plated, eqiv. GMSTBVA 2,5/ 5-G; 1766699; 2EDGVC-7.5-05P

Parameters

Height:	12,2mm
Number of pins:	5
Manufacturer:	XINYA
Terminal pitch:	7,5mm
Colour:	Green

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	12,2mm
Number of pins:	5
Manufacturer:	XINYA
Terminal pitch:	7,5mm
Colour:	Green
