XY2500R-DS(5.08)-20P XINYA Terminal block

Symbol Micros: Z TLPHCW300r-20p

60614

Z TLPHCW300r-20p

Contractor Symbol:

Case : Rys.TLPHCW300r-20p

Datasheet

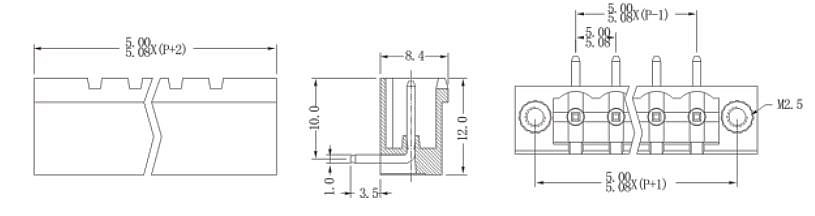

Technical drawing Add to favourites

solder pin: brass; tin plated; equivalent: MSTB 2,5/20-GF-5,08; 1776689; 2EDGRM-5.08-20P

Parameters

Height:	8,4mm
Number of pins:	20
Colour:	Green
Manufacturer:	XINYA
Terminal pitch:	5,08mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	8,4mm
Number of pins:	20
Colour:	Green
Manufacturer:	XINYA
Terminal pitch:	5,08mm
