XY2500F-G(3.5)-08P XINYA
Symbol Micros:
Z TLPS001v-08p

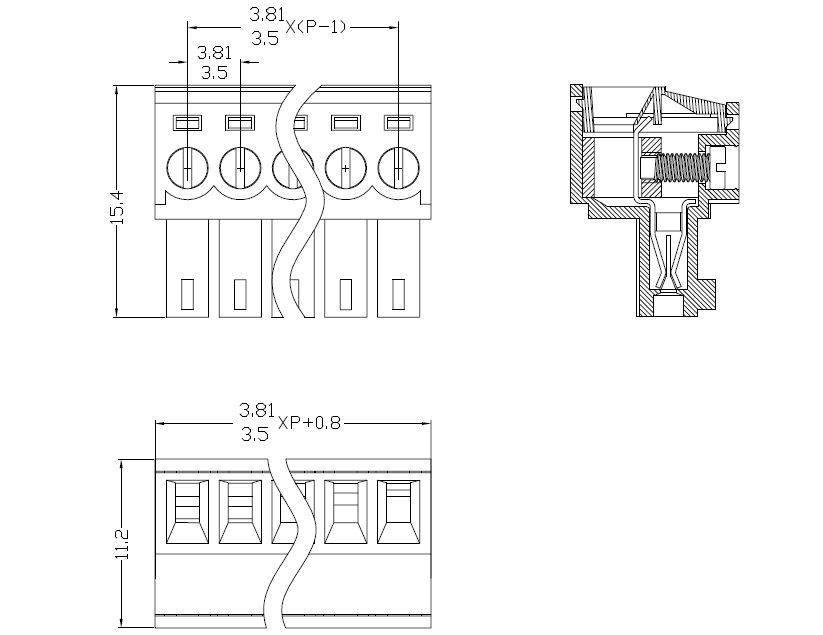

Case : Rys.TLPS001v-08p

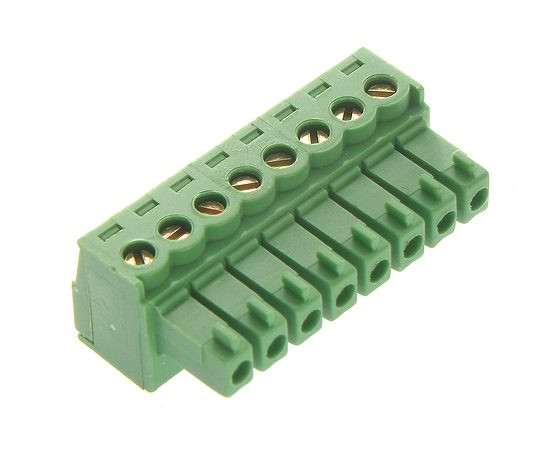

8 poles, pitch 3.5mm,height 15.4mm, green color,clamp:phosphor bronze,tin plated, 300V, 8A, 28-16AWG, mates with TLPHC001 3.5mm wire cage: brass,nickel plated, screw: steel, zinc plated, eqiv. MC 1.5/ 8-ST-3.5; 1840421; 15EDGK-3.5/8P
Parameters
| Height: | 15,4mm |
| Number of pins: | 8 |
| Terminal pitch: | 3,5mm |
| Colour: | Green |
| Manufacturer: | XINYA |
| Height: | 15,4mm |
| Number of pins: | 8 |
| Terminal pitch: | 3,5mm |
| Colour: | Green |
| Manufacturer: | XINYA |
