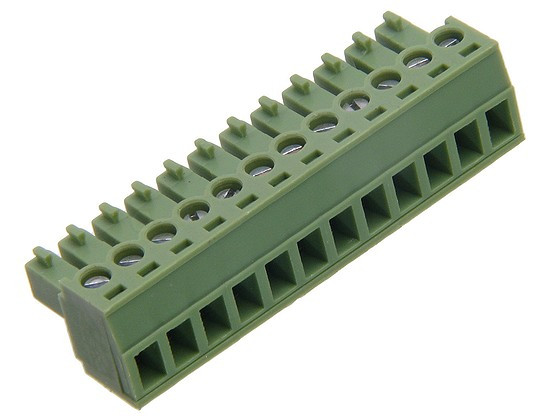

XY2500F-C(3.81)-12P XINYA Terminal block

Symbol Micros: Z TLPS100v-12p
Contractor Symbol:
Case : Rys.TLPS100v-12p

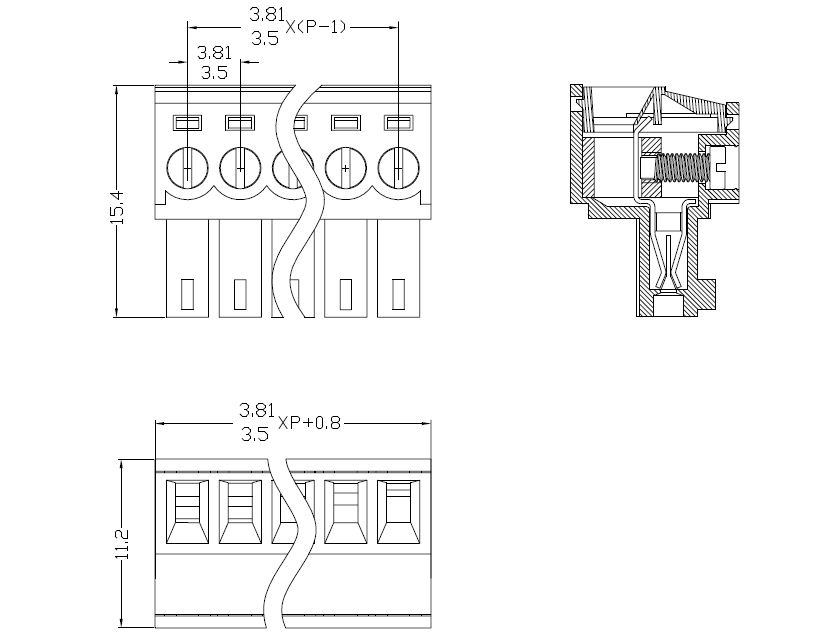

Technical drawing Add to favourites
12 poles,pitch 3.81mm,height 15.4mm,green color,clamp:phosphor bronze,tin plated, 300V, 8A, 28-16AWG, mates with TLPHC100 3.81mm wire cage: brass,nickel plated, screw: steel, zinc plated, eqiv. MC 1,5/12-ST-3,81; 1803675; 15EDGK-3.81-12P
Parameters
Height: 15,4mm
Number of pins: 12
Terminal pitch: 3,81mm
Colour: Green
Manufacturer: XINYA


Item available on request
Height: 15,4mm
Number of pins: 12
Terminal pitch: 3,81mm
Colour: Green
Manufacturer: XINYA
