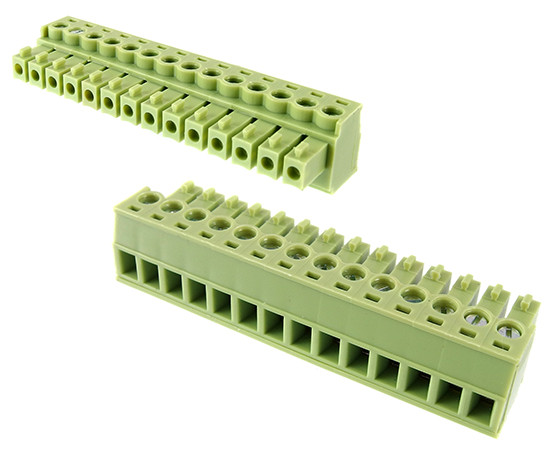

XY2500F-C(3.81)-14P XINYA Terminal block
Symbol Micros:
Z TLPS100v-14p
Case : Rys.TLPS100v-14p

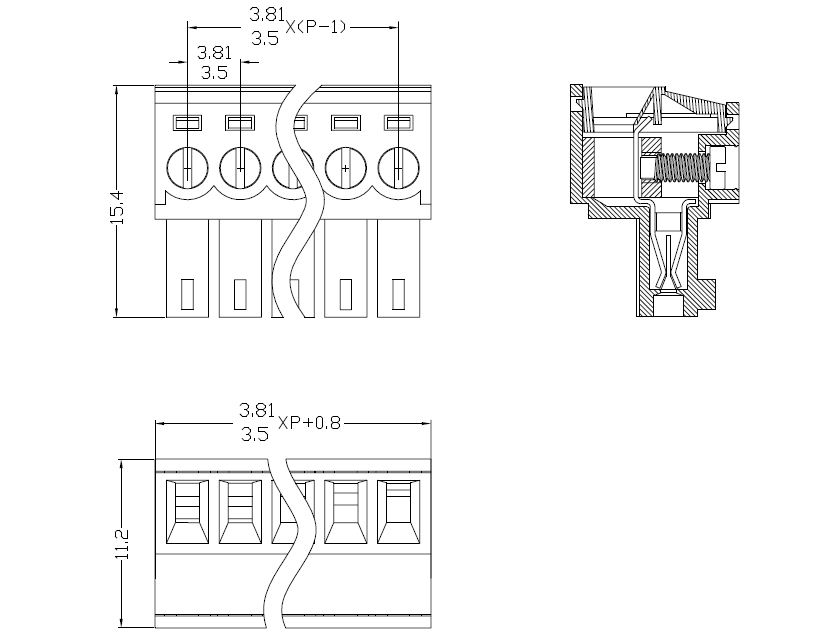

14 poles;pitch: 3.81mm;height: 15.4mm;green color,clamp:phosphor bronze,tin plated, 300V; 8A, 28-16AWG; mates with TLPHC100 3.81mm wire cage: brass,nickel plated; screw: steel; zinc plated; eqiv. MC 1,5/14-ST-3,81; 1803691; 15EDGK-3.81-14P
Parameters
| Height: | 15,4mm |
| Number of pins: | 14 |
| Terminal pitch: | 3,81mm |
| Colour: | Green |
| Manufacturer: | XINYA |
| Height: | 15,4mm |
| Number of pins: | 14 |
| Terminal pitch: | 3,81mm |
| Colour: | Green |
| Manufacturer: | XINYA |
