XY2500F-A(5.0)-03P XINYA

Symbol Micros: Z TLPS200v-03p

15203

Z TLPS200v-03p

Contractor Symbol:

Case : Rys.TLPS200v-03p

Datasheet

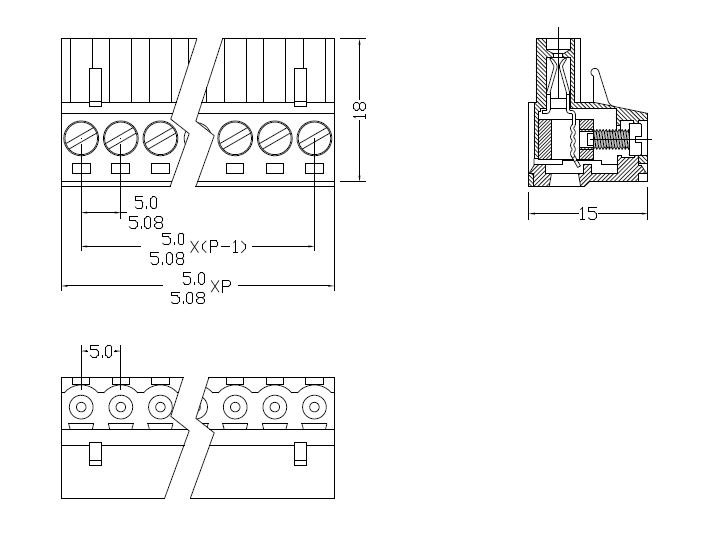

Technical drawing Add to favourites

03 poles,pitch 5.00mm,height 15.0mm, green colour, clamp:phosphore bronze,nickel, 300V, 15A, 28-12AWG, straigth, mates with TLPH 5.00mm wire cage: steel, zinc plated, screw: steel, zinc plated

Parameters

Height:	15,0mm
Number of pins:	3
Colour:	Green
Manufacturer:	XINYA
Terminal pitch:	5,0mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	15,0mm
Number of pins:	3
Colour:	Green
Manufacturer:	XINYA
Terminal pitch:	5,0mm
