XY2500F-BV(5.08)-14P XINYA Terminal block

Symbol Micros: Z TLPS300r-14p

57036

Z TLPS300r-14p

Contractor Symbol:

Case : Rys.TLPS300r-14p

Datasheet

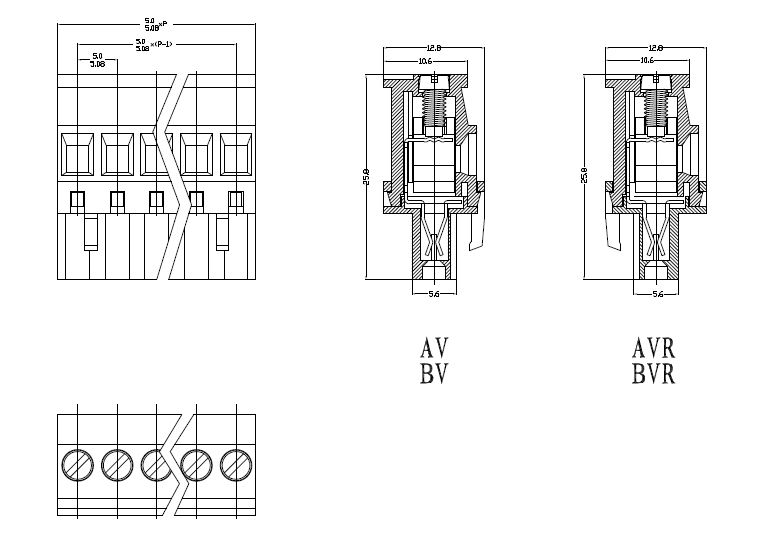

Technical drawing Add to favourites

300V; 15A; 28-12AWG; straight, mates with TLPH 5.08mm wire cage: brass; nickel plated; screw: steel; znic plated

Parameters

Height:	25,8mm
Number of pins:	14
Colour:	Green
Manufacturer:	XINYA
Terminal pitch:	5,08mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	25,8mm
Number of pins:	14
Colour:	Green
Manufacturer:	XINYA
Terminal pitch:	5,08mm
