XY2500F-D(3.81)-04P XINYA Terminal block

Symbol Micros: Z TLPSZ100v-04p

52282

Z TLPSZ100v-04p

Contractor Symbol:

Case : Rys.TLPSZ100v-04p

Datasheet

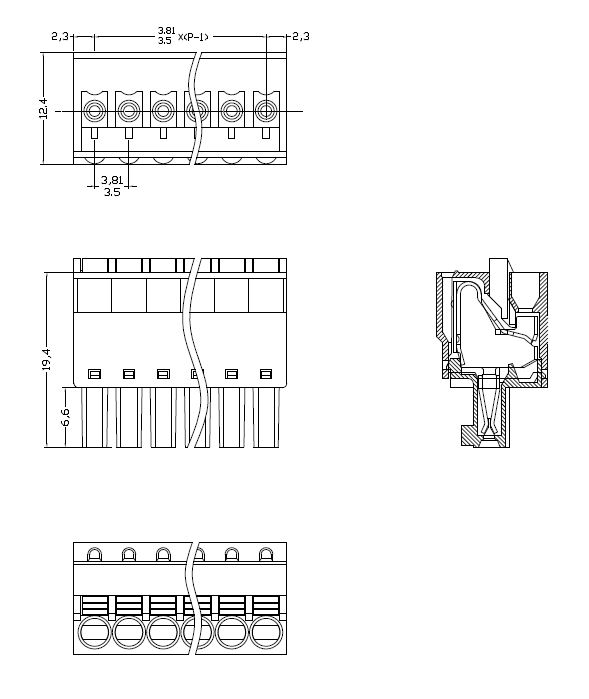

Technical drawing Add to favourites

4 poles, pitch 3.81mm, height 12.4mm, green color, clamp type, 300V, 8A, 28-16AWG, straight, mates with TLPHC100 3.81mm clamp: phosphore bronze, nickel plated, clamping, eqiv. FK-MCP 1,5/ 4-ST-3,81; 1851067; 15EDGKD-3.81-04P

Parameters

Height:	12,4mm
Number of pins:	4
Terminal pitch:	3,81mm
Colour:	Green
Manufacturer:	XINYA

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	12,4mm
Number of pins:	4
Terminal pitch:	3,81mm
Colour:	Green
Manufacturer:	XINYA
