XY2500F-L(5.08)-23P XINYA Terminal block

Symbol Micros: Z TLPSZ300v-23p

57068

Z TLPSZ300v-23p

Contractor Symbol:

Case : Rys.TLPSZ300v-23p

Datasheet

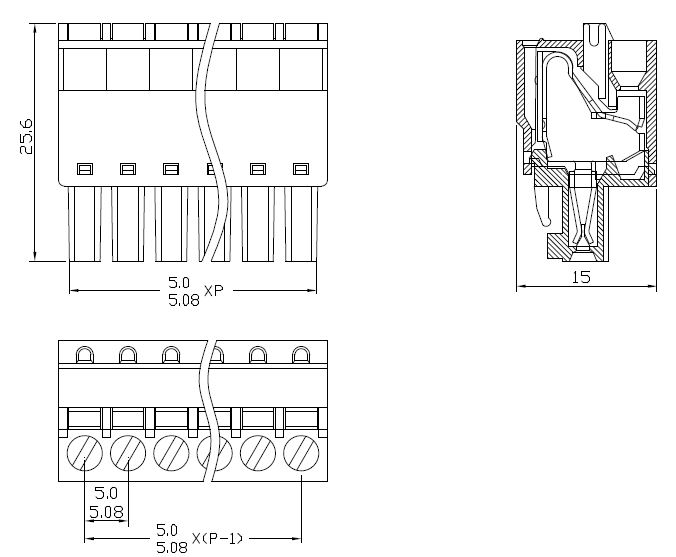

Technical drawing Add to favourites

23 poles; pitch: 5.08mm; height 25.6mm; green colour; clamp type, 300V; 10A; 26-12AWG; straigth, mates with TLPH 5.08mm clamp: phosphor bronze; nickel plated; clamping: stainless steel

Parameters

Height:	25,6mm
Number of pins:	23
Colour:	Green
Manufacturer:	XINYA
Terminal pitch:	5,08mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	25,6mm
Number of pins:	23
Colour:	Green
Manufacturer:	XINYA
Terminal pitch:	5,08mm
