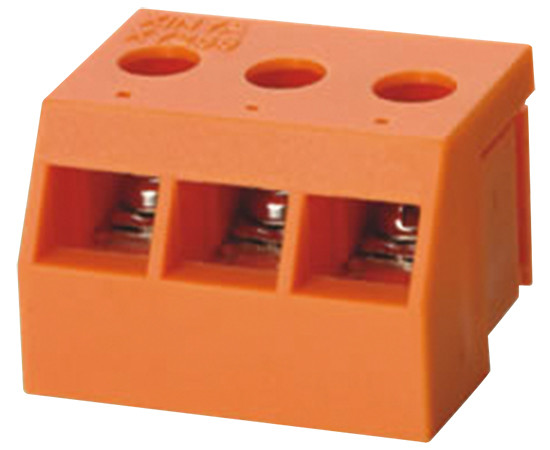

XY266-1P XINYA Terminal block

Symbol Micros: Z TLR66/2

32667

Z TLR66/2

Contractor Symbol:

Case : Rys.TLR66/2

Datasheet

Technical drawing Add to favourites

1 pole; pitch 9,5mm; height: 20.0mm; orange colour; 750V, 16A, 10-24AWG, housing PA66(UL 94V-0)

Parameters

Height:	20mm
Terminal pitch:	9,5mm
Number of pins:	1
Colour:	Orange
Manufacturer:	XINYA

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	20mm
Terminal pitch:	9,5mm
Number of pins:	1
Colour:	Orange
Manufacturer:	XINYA
