XY608-5.6-2P XINYA

Symbol Micros: Z TLZ40-02p

53345

Z TLZ40-02p

Contractor Symbol:

Case : Rys.TLZ40-02p

Datasheet

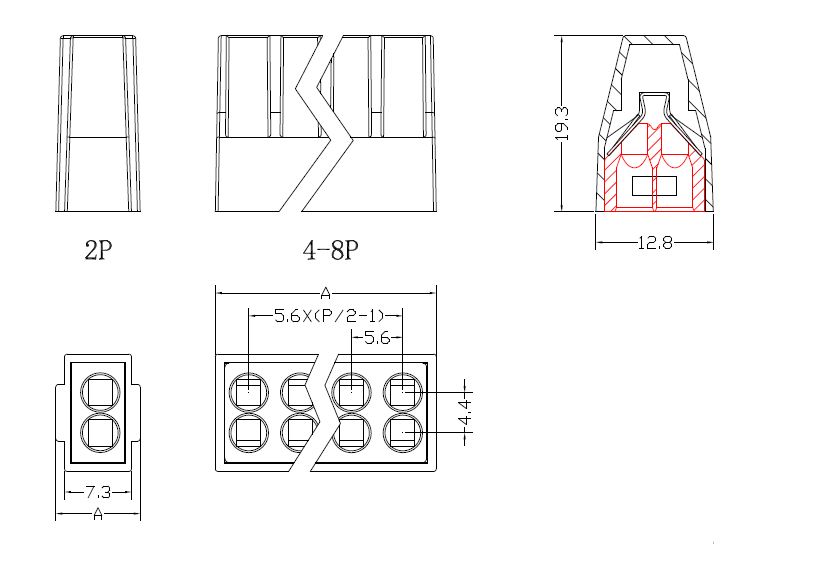

Technical drawing Add to favourites

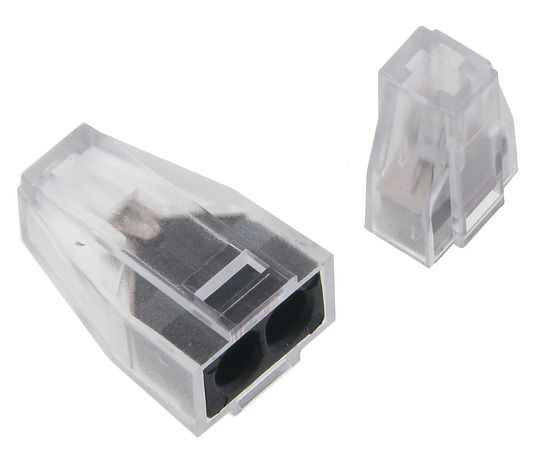

spring terminals, 2 poles, p. 5.6mm, h=19.2mm 400V, 24A, 22-14AWG, 2.5mm2

Parameters

Height [m]:	0mm
Terminal pitch [m]:	5,6mm
Number of pins:	2
Colour:	Transparent
Manufacturer:	XINYA

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height [m]:	0mm
Terminal pitch [m]:	5,6mm
Number of pins:	2
Colour:	Transparent
Manufacturer:	XINYA
