XY608-5.6-6P XINYA

Symbol Micros: Z TLZ40-06p

53347

Z TLZ40-06p

Contractor Symbol:

Case : Rys.TLZ40-06p

Datasheet

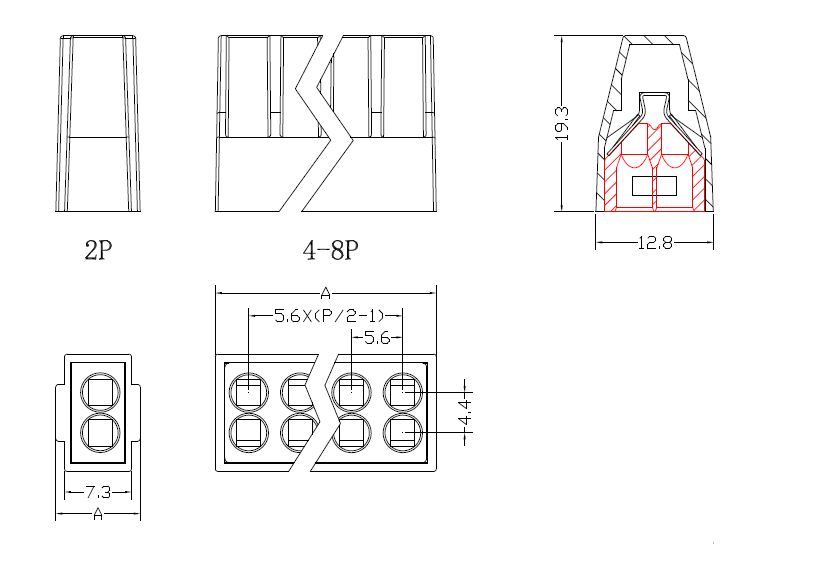

Technical drawing Add to favourites

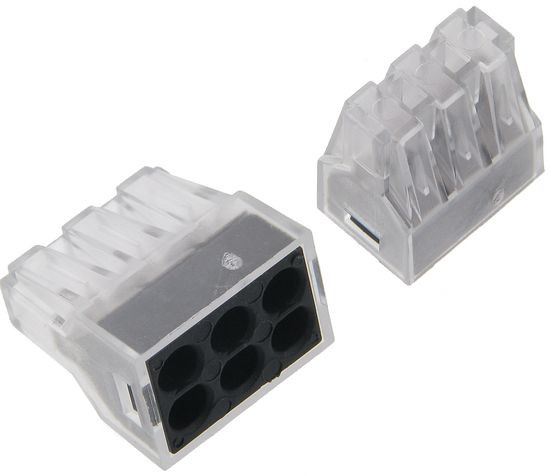

spring terminals, 6 poles, p. 5.6mm, h=19.2mm 400V, 24A, 22-14AWG, 2.5mm2

Parameters

Height:	0mm
Terminal pitch:	5,6mm
Number of pins:	6
Colour:	Transparent
Manufacturer:	XINYA

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	0mm
Terminal pitch:	5,6mm
Number of pins:	6
Colour:	Transparent
Manufacturer:	XINYA
