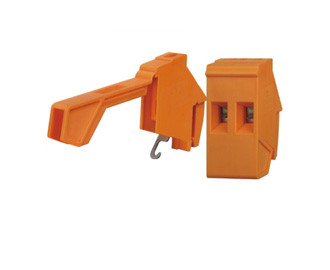

TSCB4-03P-15-01AH DEGSON Terminal block

Symbol Micros: Z TSCB4/3

35209

Z TSCB4/3

Contractor Symbol:

Case : Rys TSCB4/3

Datasheet

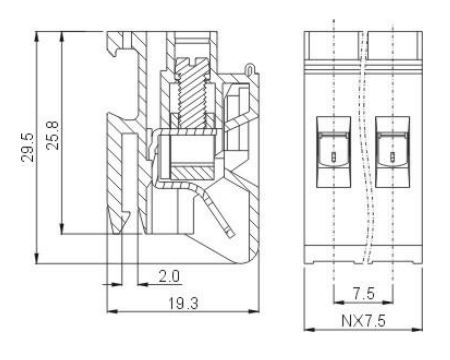

Technical drawing Add to favourites

3 poles, pitch 7.5mm, height 32.6mm, orange colour 300V, 20A, 20-10AWG, 4.0mm2, housing PA66(UL 94V-0), M3

Parameters

Height:	32,6mm
Terminal pitch:	7,5mm
Number of pins:	3
Colour:	Orange
Manufacturer:	DEGSON

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	32,6mm
Terminal pitch:	7,5mm
Number of pins:	3
Colour:	Orange
Manufacturer:	DEGSON
