CONNECTAR USB Connector

Symbol Micros: Z USBg-Arb

22082

Z USBg-Arb

Contractor Symbol:

Case : Rys.USBg-Arb

Datasheet

Technical drawing Add to favourites

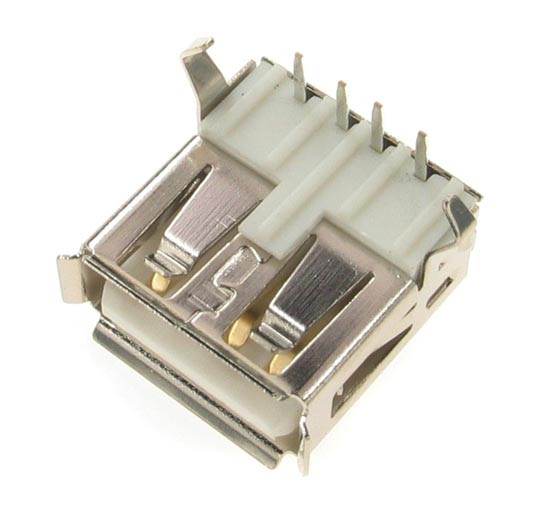

socket; USB type A, angled, white insulator, SMT eqiv: USBS1ARW; USBA-G; DS1095-WNR0

Parameters

Type:	USB A
Connector:	Socket
Operating voltage:	30V
Current:	1,5A
Version:	USB 2.0
Mounting:	SMD
Spatial orientation:	Horizontal

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1095-WNR0 RoHS Case style: Rys.USBg-Ars Datasheet

In stock:

36 pcs.

Quantity of pcs.	3+	20+	120+	840+	2520+
Net price (EUR)	0,3073	0,1641	0,1258	0,1139	0,1116

Add to comparison tool Add inquiry (RFQ)

Packaging:
120/840 Quantity (multiple: 1)

- +

Manufacturer:: CONNECTAR Manufacturer part number: JS-1102-WE-1004 RoHS Case style: Rys.USBg-Arb Datasheet

In stock:

1104 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,2529	0,1343	0,1040	0,0960	0,0920

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/1000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-02-20

Quantity of pcs.: 3000





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-03-10

Quantity of pcs.: 6000

• Parameters

Type:	USB A
Connector:	Socket
Operating voltage:	30V
Current:	1,5A
Version:	USB 2.0
Mounting:	SMD
Spatial orientation:	Horizontal
