DS1095-01-WNR0 CONNFLY USB Connector

Symbol Micros: Z USBg-Arbv

36009

Z USBg-Arbv

Contractor Symbol:

Case : Rys.USBg-Arbv

Datasheet

Technical drawing Add to favourites

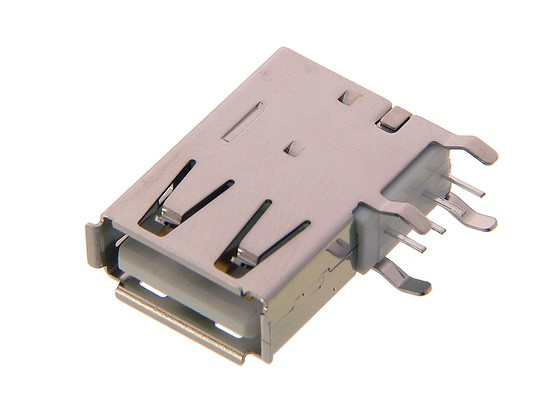

socket; USB type A, angled, white insulator, THT

Parameters

Type:	USB A
Version:	USB 2.0
Connector:	Socket
Current:	1,5A
Operating voltage:	30V
Mounting:	THT
Spatial orientation:	Vertical

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1095-01-WNR0 RoHS Case style: Rys.USBg-Arbv Datasheet

In stock:

178 pcs.

Quantity of pcs.	2+	15+	100+	200+	1000+
Net price (EUR)	0,5479	0,3034	0,2399	0,2300	0,2189

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/200 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1095-01-WNRO RoHS Case style: Rys.USBg-Arbv Datasheet

In stock:

0 pcs.

Quantity of pcs.	2+	10+	40+	100+	600+
Net price (EUR)	0,5479	0,3292	0,2587	0,2375	0,2189

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/600 Quantity (multiple: 1)

- +

• Parameters

Type:	USB A
Version:	USB 2.0
Connector:	Socket
Current:	1,5A
Operating voltage:	30V
Mounting:	THT
Spatial orientation:	Vertical
