USB Connector CONNECTAR

Symbol Micros: Z USBg-Arc

22083

Z USBg-Arc

Contractor Symbol:

Case : Rys.USBg-Arc

Datasheet

Technical drawing Add to favourites

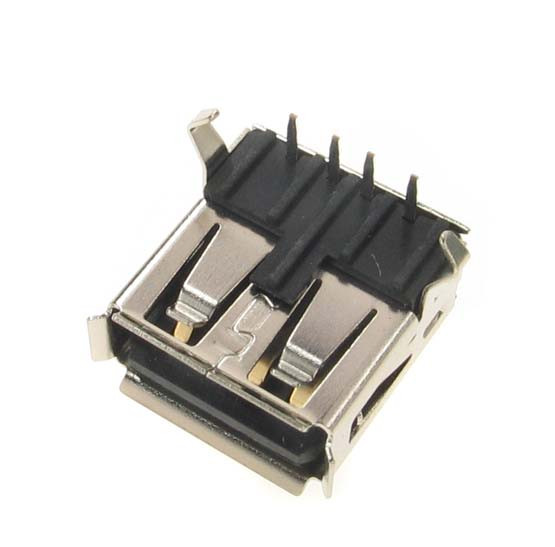

socket; USB type A, angled, black insulator, THT eqiv: USBS1ARB

Parameters

Manufacturer:	CONNECTAR
Type:	USB A
Mounting:	THT
Operating voltage:	30V
Current:	1,5A
Version:	USB 2.0
Connector:	Socket

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-12-10

Quantity of pcs.: 2000

• Parameters

Manufacturer:	CONNECTAR
Type:	USB A
Mounting:	THT
Operating voltage:	30V
Current:	1,5A
Version:	USB 2.0
Connector:	Socket
Spatial orientation:	Angled
