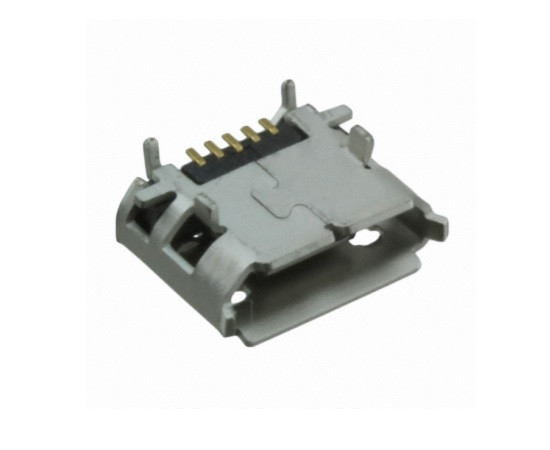

10103594-0001LF AMPHENOL USB connector

Symbol Micros: Z USBg-Bmicro5p

84873

Z USBg-Bmicro5p

Contractor Symbol:

Case : Rys.10103594-0001LF

Datasheet

Technical drawing Add to favourites

Socket; 5pin; USB 2.0; horizontal; SMT; THT; black color;

Parameters

Manufacturer:	AMPHENOL
Type:	USB B micro
Mounting:	SMD
Connector:	Socket
Version:	USB 2.0
Spatial orientation:	Horizontal

All parameters

Manufacturer:: Amphenol Manufacturer part number: 10103594-0001LF RoHS Case style: Rys.10103594-0001LF Datasheet

In stock:

1500 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	0,8718	0,5797	0,4800	0,4336	0,4150

Add to comparison tool Add inquiry (RFQ)

Packaging:
1500 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	AMPHENOL
Type:	USB B micro
Mounting:	SMD
Connector:	Socket
Version:	USB 2.0
Spatial orientation:	Horizontal
