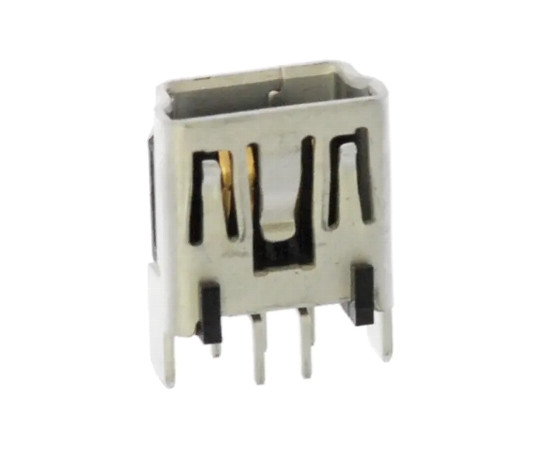

500075-1517 MOLEX USB Connector

Symbol Micros: Z USBg-mB-MX

94314

Z USBg-mB-MX

Contractor Symbol:

Case : Rys.USBg-mB-MX

Datasheet

Technical drawing Add to favourites

socket; USB type mini B, THT; 5pin; straight;

Parameters

Manufacturer:	MOLEX
Type:	USB B mini
Mounting:	THT
Version:	N/A
Connector:	Socket
Operating voltage:	30V
Current:	1A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	MOLEX
Type:	USB B mini
Mounting:	THT
Version:	N/A
Connector:	Socket
Operating voltage:	30V
Current:	1A
Spatial orientation:	Angled
