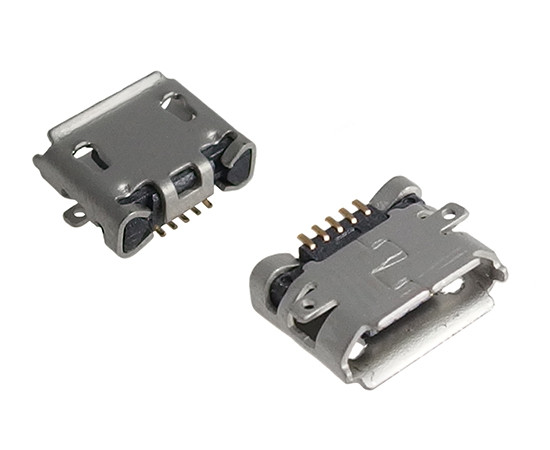

A4A0502-D-30-R TECONN USB Connector

Symbol Micros: Z USBg-uBs5

76679

Z USBg-uBs5

Contractor Symbol:

Case : Rys.USBg-uBs5

Datasheet

Technical drawing Add to favourites

socket; micro USB 2.0; type B; SMD; 5 pins; 30u" gold plating; durability 10000 cycles, eqiv: USBMCS1B5W, ESB228110100Z, T/R package

Parameters

Type:	Micro B
Connector:	Socket
Version:	USB 2.0
Mounting:	SMD
Spatial orientation:	Angled

All parameters

Manufacturer:: TECONN Manufacturer part number: 10336105F019 RoHS Case style: Rys.USBg-uBs5 Datasheet

In stock:

225 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,5850	0,3548	0,2725	0,2467	0,2338

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
1400/11200 Quantity (multiple: 1)

- +

• Parameters

Type:	Micro B
Connector:	Socket
Version:	USB 2.0
Mounting:	SMD
Spatial orientation:	Angled
