WA22J4TL2I WEIPU Industrial connctor

Symbol Micros: Z WA22J4TL2-07

117191

Z WA22J4TL2-07

Contractor Symbol:

Case : Rys.Z WA22J4TL2I

Datasheet

Technical drawing Add to favourites

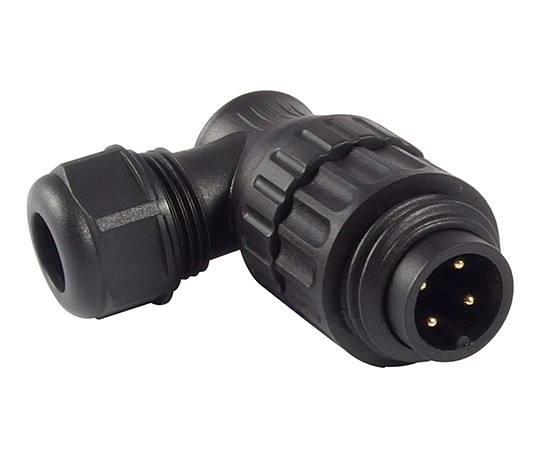

Male connector, circular, layout 3pin+PE, cable diameter 4.5-7mm screwed, angled, for cable, IP67, 400V, 16A, screw termination

Parameters

Series:	WA22
Number of pins:	3
Current:	16A
Operating voltage:	400V
Manufacturer:	WEIPU
Mounting:	Screw clamp
Connector:	Plug

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: WA22J4TL2 I RoHS Case style: Rys.Z WA22J4TL2I Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,7193	3,3076	3,0596	2,9357	2,8608

Add to comparison tool Add inquiry (RFQ)

Packaging:
1 Quantity (multiple: 1)

- +

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: WA22J4TL2 I RoHS Case style: Rys.Z WA22J4TL2I Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,4129	3,0339	2,8070	2,6924	2,6246

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Series:	WA22
Number of pins:	3
Current:	16A
Operating voltage:	400V
Manufacturer:	WEIPU
Mounting:	Screw clamp
Connector:	Plug
IP rating:	IP67
Type of connector:	Male
