WA22K4TL2I WEIPU Industrial connctor

Symbol Micros: Z WA22K4TL2-07

117199

Z WA22K4TL2-07

Contractor Symbol:

Case : Rys.Z WA22K4TL2I

Datasheet

Technical drawing Add to favourites

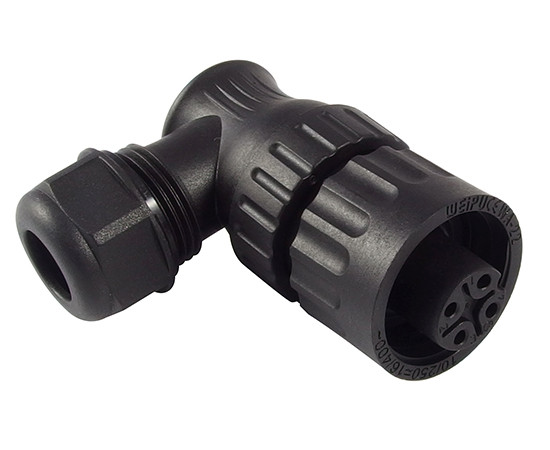

Female connector, circular, layout 3pin+PE, cable diameter 4.5-7mm screwed, angled, for cable, IP67, 400V, 16A, screw termination

Parameters

Series:	WA22
Number of pins:	3
Current:	16A
Operating voltage:	400V
Manufacturer:	WEIPU
Mounting:	Screw clamp
Connector:	Plug

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: WA22K4TL2I RoHS Case style: Rys.Z WA22K4TL2I Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,7660	3,3481	3,0978	2,9726	2,8971

Add inquiry (RFQ)

Packaging:
1 Quantity (multiple: 1)

- +

• Parameters

Series:	WA22
Number of pins:	3
Current:	16A
Operating voltage:	400V
Manufacturer:	WEIPU
Mounting:	Screw clamp
Connector:	Plug
IP rating:	IP67
Type of connector:	Female
