WA22K4Z2-GW-CE WEIPU Industrial connctor

Symbol Micros: Z WA22K4Z2

74817

Z WA22K4Z2

Contractor Symbol:

Case : Rys.Z WA22K4Z2

Datasheet

Technical drawing Add to favourites

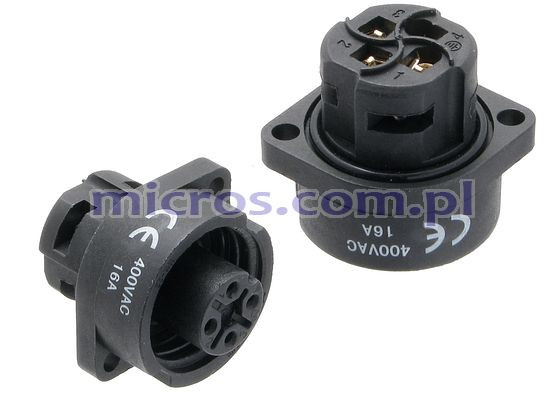

Female connector, circular, 3pin+PE, screw termination, panel mount screwed, flange, for panel mounting, IP67, 400V, 16A

Parameters

Series:	WA22
Number of pins:	3
Current:	16A
Operating voltage:	400V
Manufacturer:	WEIPU
Mounting:	Screw clamp
Connector:	Socket

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: WA22K4Z2-GW-CE RoHS Case style: Rys.Z WA22K4Z2 Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	6+	18+	30+	150+
Net price (EUR)	3,4929	2,9546	2,8018	2,7571	2,6725

Add to comparison tool Add inquiry (RFQ)

Packaging:
6 Quantity (multiple: 1)

- +

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: WA22K4Z2 RoHS Case style: Rys.Z WA22K4Z2 Datasheet

In stock:

50 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,4929	3,1050	2,8723	2,7571	2,6866

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Series:	WA22
Number of pins:	3
Current:	16A
Operating voltage:	400V
Manufacturer:	WEIPU
Mounting:	Screw clamp
Connector:	Socket
IP rating:	IP67
Type of connector:	Female
