WA22K7TL1I WEIPU Industrial connctor

Symbol Micros: Z WA22K7TL1-07

117201

Z WA22K7TL1-07

Contractor Symbol:

Case : Rys.Z WA22K7TL1I

Datasheet

Add to favourites

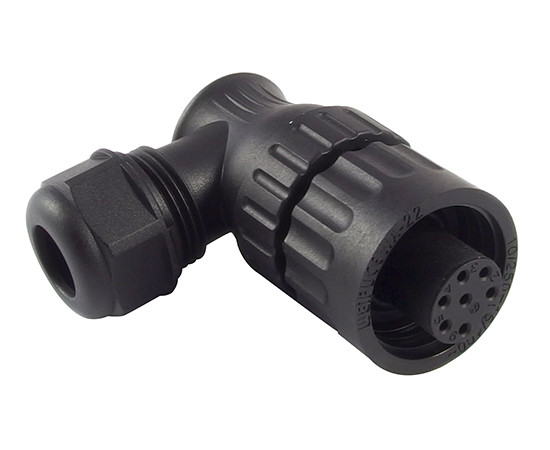

Female connector, circular, layout 6pin+PE, cable diameter 4.5-7mm screwed, angled, for cable, IP67, 250V, 10A, solder termination

Parameters

Series:	WA22
Number of pins:	6
Current:	10A
Operating voltage:	250V
Manufacturer:	WEIPU
Connector:	Plug
Mounting:	Screw clamp

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: WA22K7TL1 I RoHS Case style: Rys.Z WA22K7TL1I Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,8706	3,4400	3,1826	3,0539	2,9767

Add inquiry (RFQ)

Packaging:
1 Quantity (multiple: 1)

- +

• Parameters

Series:	WA22
Number of pins:	6
Current:	10A
Operating voltage:	250V
Manufacturer:	WEIPU
Connector:	Plug
Mounting:	Screw clamp
Type of connector:	Female
IP rating:	IP67
