WA22K7Z1 WEIPU Industrial connctor

Symbol Micros: Z WA22K7Z1

75668

Z WA22K7Z1

Contractor Symbol:

Case : Rys.Z WA22K7Z

Datasheet

Technical drawing Add to favourites

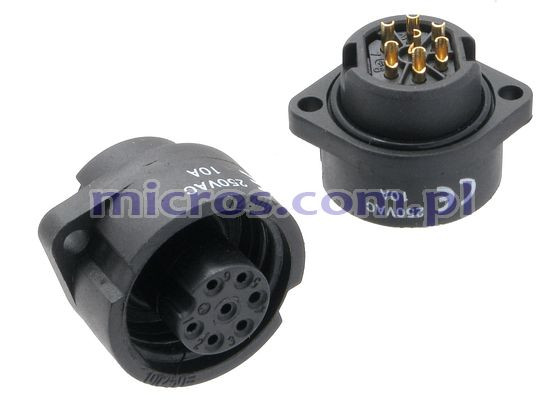

Female connector, circular, 6pin+PE, solder termination, panel mount screwed, for panel mounting, internal thread IP67, 250V, 10A

Parameters

Series:	WA22
Number of pins:	6
Current:	10A
Operating voltage:	250V
Manufacturer:	WEIPU
Mounting:	Soldering
Connector:	Socket

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: WA22K7Z1(R) RoHS Case style: Rys.Z WA22K7Z Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	3+	10+	30+	70+
Net price (EUR)	3,7367	3,3134	3,0594	2,9325	2,8737

Add to comparison tool Add inquiry (RFQ)

Packaging:
10/70 Quantity (multiple: 1)

- +

• Parameters

Series:	WA22
Number of pins:	6
Current:	10A
Operating voltage:	250V
Manufacturer:	WEIPU
Mounting:	Soldering
Connector:	Socket
IP rating:	IP67
Type of connector:	Female
