WDCg3713smd-2

Symbol Micros: Z WDCg3713smd-2

125229

Z WDCg3713smd-2

Contractor Symbol:

Case : Rys.WDCg3713smd-2

Technical drawing Add to favourites

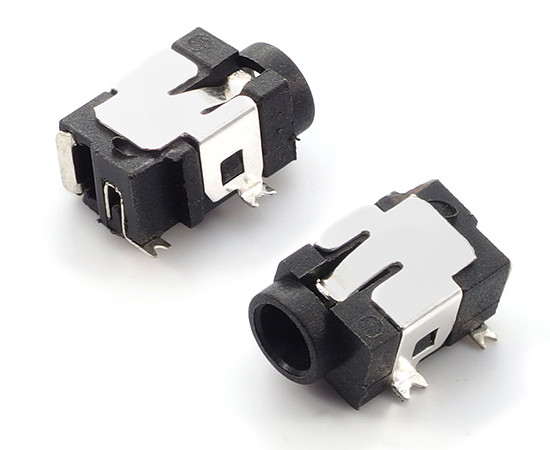

Power socket DC Φ3,7x1,3mm Rating 30VDC, 0.5A, life test 5000 cycles

Parameters

Current:	0,5A
Operating voltage:	30V
Plug outside diameter:	3,7mm
Plug inside diameter:	1,3mm
Mounting:	SMD
Type of connector:	Male
Connector:	Socket

All parameters

Manufacturer:: CONNECTAR Manufacturer part number:   Case style: Rys.WDCg3713smd-2

In stock:

794 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,2656	0,1450	0,0950	0,0820	0,0757

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Current:	0,5A
Operating voltage:	30V
Plug outside diameter:	3,7mm
Plug inside diameter:	1,3mm
Mounting:	SMD
Type of connector:	Male
Connector:	Socket
