WDCG4013l

Symbol Micros: Z WDCg4013l

125226

Z WDCg4013l

Contractor Symbol:

Case : Rys.WDCg4013l

Technical drawing Add to favourites

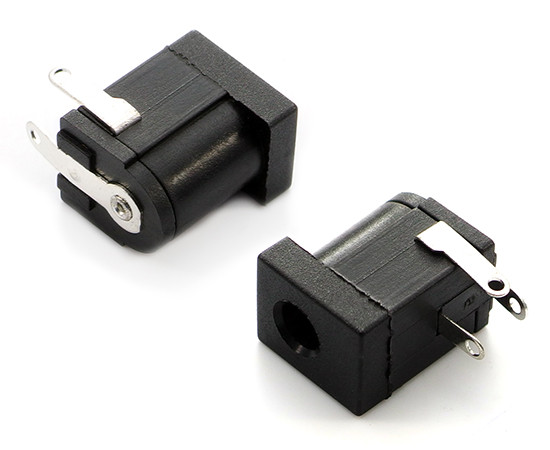

Power socket DC Φ4,0x1,3mm, soldering Rating 24VDC, 1.0A, life test 5000 cycles

Parameters

Current:	1A
Operating voltage:	24V
Plug outside diameter:	4,0mm
Plug inside diameter:	1,3mm
Mounting:	Soldering
Type of connector:	Male
Connector:	Socket

All parameters

Manufacturer:: CONNECTAR Manufacturer part number:   Case style: Rys.WDCg4013l

In stock:

124 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2370	0,1308	0,0865	0,0721	0,0678

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Current:	1A
Operating voltage:	24V
Plug outside diameter:	4,0mm
Plug inside diameter:	1,3mm
Mounting:	Soldering
Type of connector:	Male
Connector:	Socket
