WDCG5525o

Symbol Micros: Z WDCg5525o

13541

Z WDCg5525o

Contractor Symbol:

Case : Rys.WDCG5525O

Datasheet

Technical drawing Add to favourites

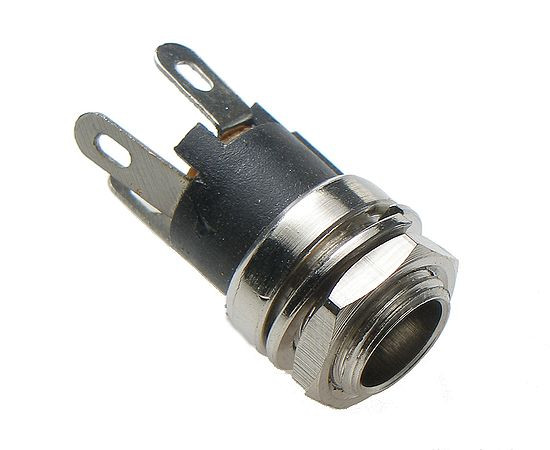

Power socket DC Φ5,5x2,5mm for panel; 3A; 30V

Parameters

Current:	3A
Operating voltage:	30V
Plug outside diameter:	5,5mm
Plug inside diameter:	2,5mm
Mounting:	Soldering
Type of connector:	Male
Connector:	Socket

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-02-20

Quantity of pcs.: 5000

• Parameters

Current:	3A
Operating voltage:	30V
Plug outside diameter:	5,5mm
Plug inside diameter:	2,5mm
Mounting:	Soldering
Type of connector:	Male
Connector:	Socket
