XG4A-2634 OMRON IDC connector

Symbol Micros: Z XG4A-2634

539177

Z XG4A-2634

Contractor Symbol:

Case : Rys.XG4A-2634

Datasheet

Technical drawing Add to favourites

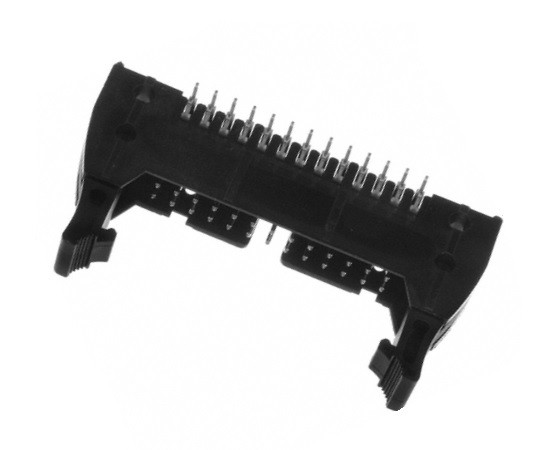

male; 26pin IDC; right angle; pitch 2.54mm; black; THT; 3A; 300V; gold plated; contact material: brass

Parameters

Number of pins:	26
Mounting:	THT
Spatial orientation:	Angled
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	26
Mounting:	THT
Spatial orientation:	Angled
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male
