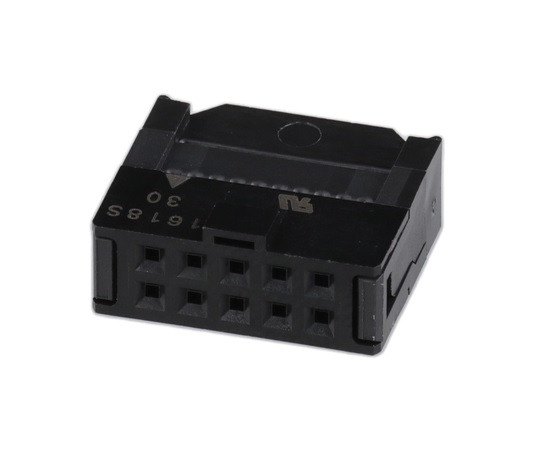

XG4M-1030-T OMRON IDC connector

Symbol Micros: Z XG4M-1030-T

539179

Z XG4M-1030-T

Contractor Symbol:

Case : Rys.XG4M-1030-T

Datasheet

Technical drawing Add to favourites

female; 10pin IDC, straight; pitch: 2.54mm for ribbon cable 1.27mm; black color; gold plated; phosphor bronze

Parameters

Number of pins:	10
Mounting:	Tape mounting (1,27mm)
Spatial orientation:	Angled
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Female

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	10
Mounting:	Tape mounting (1,27mm)
Spatial orientation:	Angled
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Female
