XT30U-F AMASS

Symbol Micros: Z XT30U-F

351603

Z XT30U-F

Contractor Symbol:

Case : Rys.XT30U-F

Datasheet

Technical drawing Add to favourites

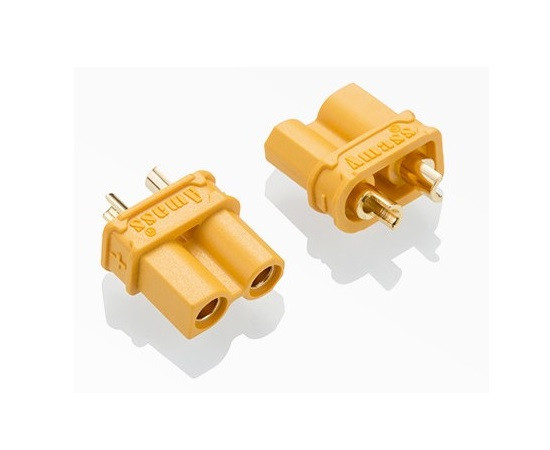

Plug, DC supply, female, 2 pin, 15A, 500V, straight yellow color, for cable (18AWG), soldered, life 1000 cycles

Parameters

Current:	15A
Operating voltage:	500V
Mounting:	Soldering
Number of pins:	2
Type of connector:	Female
Connector:	Plug

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Current:	15A
Operating voltage:	500V
Mounting:	Soldering
Number of pins:	2
Type of connector:	Female
Connector:	Plug
