XT60PB-M AMASS

Symbol Micros: Z XT60PB-M

351608

Z XT60PB-M

Contractor Symbol:

Case : Rys.XT60PB-M

Datasheet

Technical drawing Add to favourites

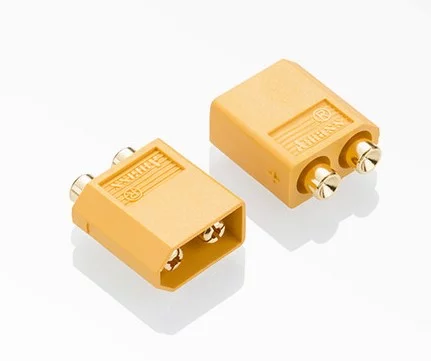

Socket, DC supply, male, 2 pin, 30A, 500V, straight yellow color, on PCBs, THT, life 1000 cycles

Parameters

Current:	30A
Operating voltage:	500V
Mounting:	THT
Number of pins:	2
Type of connector:	Male
Connector:	Socket

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-09-01

Quantity of pcs.: 500

• Parameters

Current:	30A
Operating voltage:	500V
Mounting:	THT
Number of pins:	2
Type of connector:	Male
Connector:	Socket
