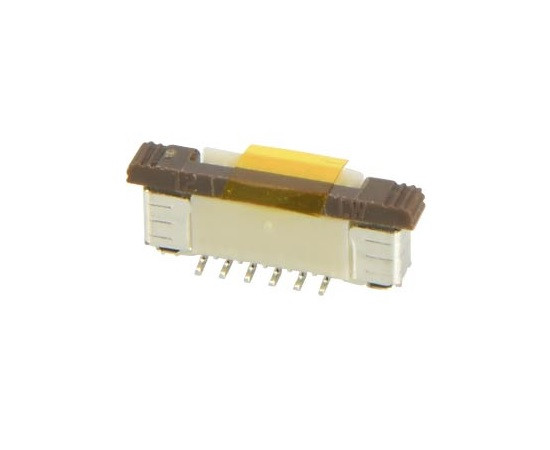

Z53-12-11110 ELECTRONAIX ZIF Connector

Symbol Micros: Z Z53-12-11110

537573

Z Z53-12-11110

Contractor Symbol:

Case : Rys.Z53-12-11110

Datasheet

Add to favourites

12 pin; SMD; pitch: 0.5mm; 50V; 0,5A; color natural; top entry; operating temperature: -40C~85C

Parameters

Number of pins:	12
Spatial orientation:	Angled
Type of connection:	Bottom contact
Mounting:	SMD
Terminal pitch [m]:	0,5mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	12
Spatial orientation:	Angled
Type of connection:	Bottom contact
Mounting:	SMD
Terminal pitch [m]:	0,5mm
