15EDGKA-3.81-12P-14-100ZH DEGSON Termianl block

Symbol Micros: Z15EDGKA-3.81/12

63858

Z15EDGKA-3.81/12

Contractor Symbol:

Case :

Datasheet

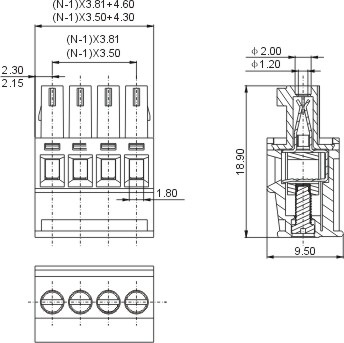

Technical drawing Add to favourites

12 poles; pitch: 3.81mm; height: 18.9mm; green color, 250V (VDE), 7A, 28-16AWG, 1.5mm2, PBT, UL94V-0

Parameters

Height:	18,9mm
Number of pins:	12
Colour:	Green
Terminal pitch:	3,81mm
Manufacturer:	DEGSON

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	18,9mm
Number of pins:	12
Colour:	Green
Terminal pitch:	3,81mm
Manufacturer:	DEGSON
