15EDGKB-3.81-05P-14-100ZH DEGSON Termianl block

Symbol Micros: Z15EDGKB-3.81/05

58229

Z15EDGKB-3.81/05

Contractor Symbol:

Case :

Datasheet

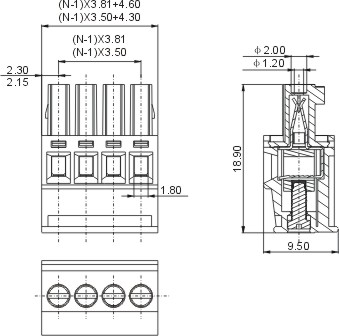

Technical drawing Add to favourites

5 poles; pitch: 3.81mm; height: 18.9mm; green color, 250V (VDE), 7A, 28-16AWG, 1.5mm2, PBT, UL94V-0, eqiv. MCVW 1,5/5-ST-3,81

Parameters

Height:	18,9mm
Number of pins:	5
Terminal pitch:	3,81mm
Colour:	Green
Manufacturer:	DEGSON

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	18,9mm
Number of pins:	5
Terminal pitch:	3,81mm
Colour:	Green
Manufacturer:	DEGSON
