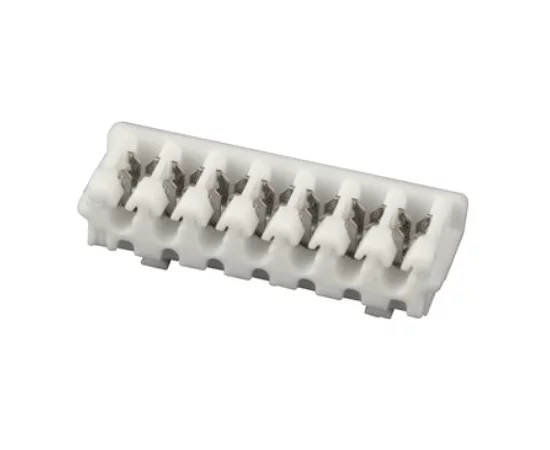

Female plug, 7pin, 173977-7, TE Connectivity

Symbol Micros: Z173977-7

100788

Z173977-7

Contractor Symbol:

Case : Rys.173977-7

Datasheet

Technical drawing Add to favourites

straight, for cable, 28-26 AWG contacts: phosphor bronze, tin plated

Parameters

Number of pins:	7
Manufacturer:	TE Connectivity
Current:	2A
Operating voltage:	125V
Connector:	Plug
Type of connector:	Female

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	7
Manufacturer:	TE Connectivity
Current:	2A
Operating voltage:	125V
Connector:	Plug
Type of connector:	Female
