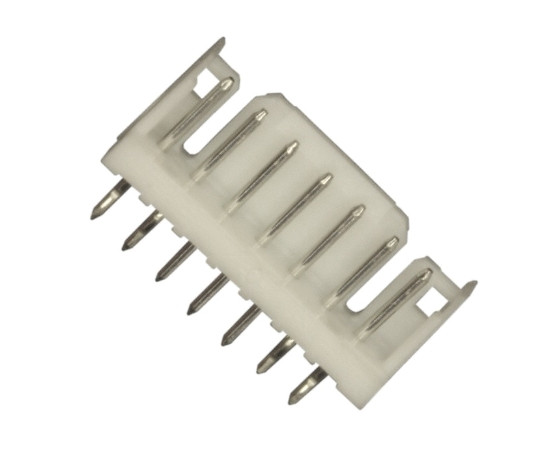

Male socket, 7pin, 292161-7, TE Connectivity

Symbol Micros: Z292161-7

49270

Z292161-7

Contractor Symbol:

Case : Rys.292161-7

Datasheet

Technical drawing Add to favourites

straight, THT, 125V, 4A contacts: tin plated

Parameters

Number of pins:	7
Manufacturer:	TE Connectivity
Current:	4A
Operating voltage:	125V
Mounting:	THT
Spatial orientation:	Straight
Connector:	Socket

All parameters

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 292161-7 RoHS Case style: Rys.292161-7 Datasheet

In stock:

50 pcs.

Quantity of pcs.	1+	5+	30+	200+	400+
Net price (EUR)	1,1190	0,7437	0,5931	0,5421	0,5328

Add to comparison tool Add inquiry (RFQ)

Packaging:
200 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	7
Manufacturer:	TE Connectivity
Current:	4A
Operating voltage:	125V
Mounting:	THT
Spatial orientation:	Straight
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	2,0mm
