8EDGKB-5.0-04P-11-01AH DEGSON Terminal block

Symbol Micros: Z8EDGKB-5.0/04

59110

Z8EDGKB-5.0/04

Contractor Symbol:

Case : Rys.8EDGKB-5.0/04

Datasheet

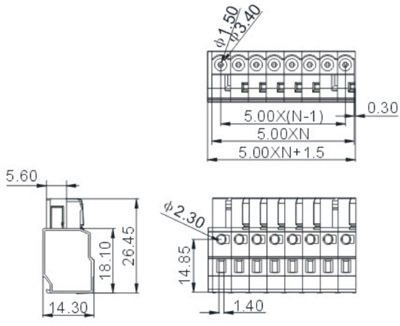

Technical drawing Add to favourites

4 poles; pitch: 5.0mm; height 26.45mm; gray color 320V (VDE), 20A, PA66, UL94V-0

Parameters

Height:	26,45mm
Number of pins:	4
Colour:	Grey
Manufacturer:	DEGSON
Terminal pitch:	5,0mm

All parameters

Manufacturer:: DEGSON Manufacturer part number: 8EDGKB-5.0-04P1101AH Case style: Rys.8EDGKB-5.0/04 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	2+	5+	20+
Net price (EUR)	0,9263	0,7260	0,5633	0,4408

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Height:	26,45mm
Number of pins:	4
Colour:	Grey
Manufacturer:	DEGSON
Terminal pitch:	5,0mm
