8EDGVC-2.5-04P-11-01AH DEGSON Termianl block

Symbol Micros: Z8EDGVC-2.5/04

59646

Z8EDGVC-2.5/04

Contractor Symbol:

Case : Rys.8EDGVC-2.5/04

Datasheet

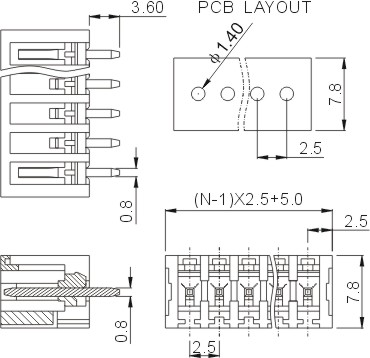

Technical drawing Add to favourites

4 poles, pitch 2.5mm, height 8.9mm, grey color,

Parameters

Height:	7,8mm
Number of pins:	4
Colour:	Grey
Terminal pitch:	2,5mm
Manufacturer:	DEGSON

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	7,8mm
Number of pins:	4
Colour:	Grey
Terminal pitch:	2,5mm
Manufacturer:	DEGSON
